Inspector Nick
Mini 140′
Cart & Reel with 140′ of Mini Push Cable
Color Self Leveling Camera
7″ Crystal Clear LCD Command Module
Rechargeable Battery
Backpack Straps Included
USB Rec
Inspector Nick
Jr 120′ – 140′
Cart & Reel with 120′ – 140′ of Mini Push Cable
Color Self Leveling Camera
7″ Crystal Clear LCD Command Module
Built in SDcard Recording
Rechargeable Battery
Padded Backpack Straps Included
Inspector Nick
Mini 200′
Cart & Reel with 200′ of Mini Push Cable
Color Self Leveling Camera w/Skid
7″ Crystal Clear LCD Command Module
Rechargeable Battery
Backpack Straps Included
USB Rec


Mini Camera Jr.
Inspector Nick JR.
Standard Equipment
-
Modular Design for Easy Field Repair
- Professionally Packaged
- JR. Color Self Leveling Camera
- 7″ Color LCD TFT Monitor (720 x 480 pixels)
- 512 Hz Built In Transmitter
- Text Annotation, Footage Counter, Light Adjustment, Time/Date
- Screenshot/Record and playback
- 120′ or 140′ Pushrod
- Built In Record to SD card (Up to 32GB)
- Padded Backpack Straps
- Microphone
Features
Model Specifications
- Line Capacity: 2″ to 4″
- Max. Distance: 140 ft (42.6 m)
- Operating Depth: 350 ft. (150psi)
- Display: 7″ 720(H) x 480(V) Pixels Color LCD TAFT Monitor
- Camera Dimensions: 1.3″ x 2″ (33 mm x 50.8 mm)
- Push-Rod Diameter: 10mm
- Video Format: NTSC or PAL
- Interface- Mini USB 1.1; AV Out
- Power: 100-240V AC in/5v DC Out
- Operating Temperature: -4° – 140°F
- Weight: 29 lbs
Available Options
- Camera Locator Receiver
- 10mm Cable


Mini Camera
Inspector Nick
Standard Equipment
- Professionally Packaged
- Rugged & Durable
- Mini Color Camera
- 7” LCD Command Module
- 512 Hz Built in Transmitter
- Text Writer, Footage Counter, Picture Inverter
- Light Adjustment, Time/Date
18 Volt Battery Receptacle (Battery and Charger not included) - 140′ Pushrod OR 200′ Pushrod
- Built In USB Recorder
- Self Leveling Camera Head
- Backpack Straps
- Microphone
Available Options
- Phone Playback Adapter
- WIFI to phone or Tablet
- Camera Locator Receiver
Features
Model Specifications
- Line Capacity: 1.5″ to 6″
- Max. Distance: 200ft (61m)
- Operating Depth: 350 ft. (150psi)
- Resolution: 420TVL
- Pixels: 512(H) x 492(V)
- Sensitivity: 0.3 Lux
- Lighting: 16 White LED’s
- Camera Dimensions: 1.3 x 2″ (33mm x 50.8mm)
- Push-Rod Diameter: .39″ (9.9mm)
- Video Format: NTSC
- Power: 110v/60hz AC, 12v DC
- Operating Temperature: 14F to 122F/-10C to 50C




Option

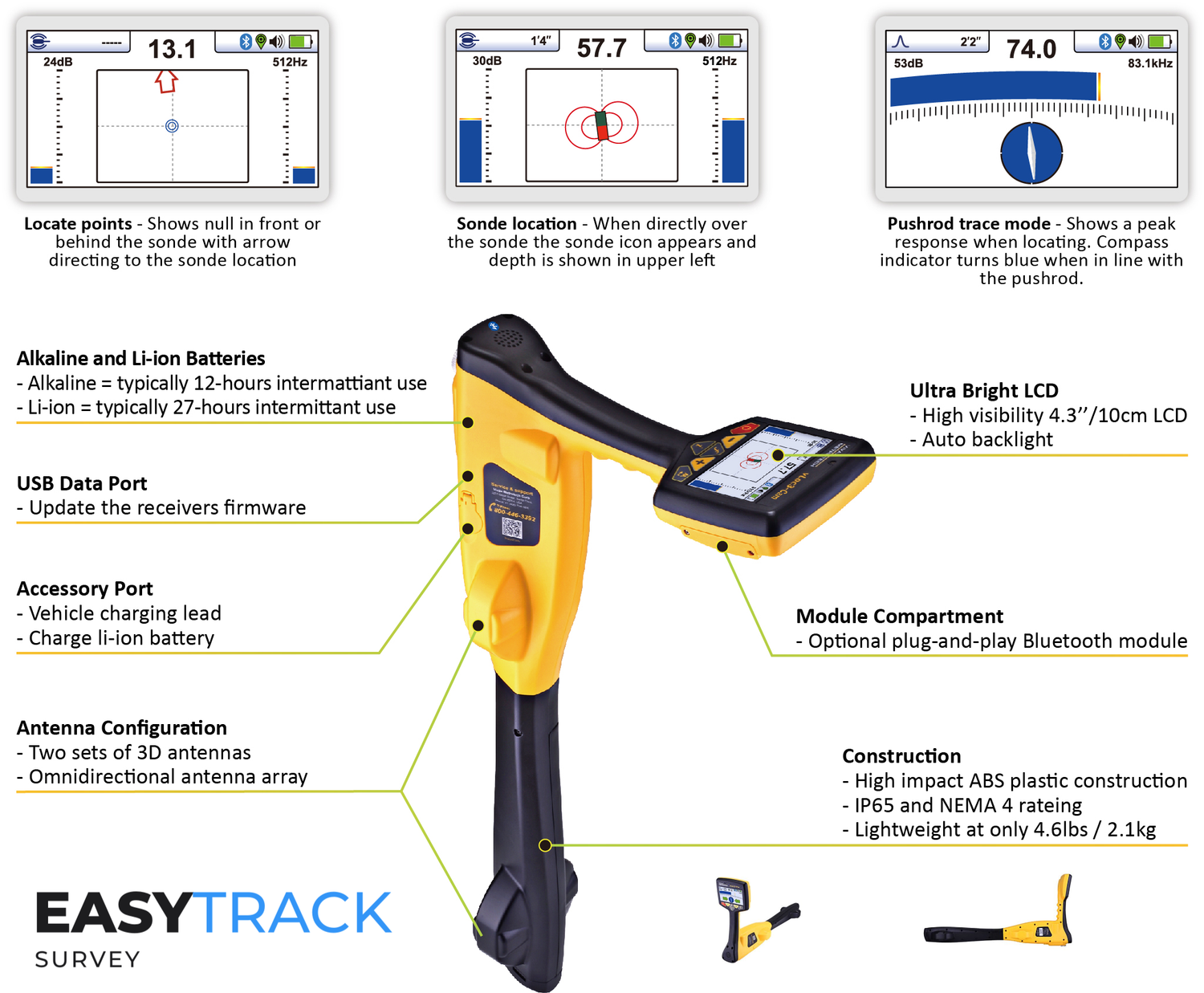

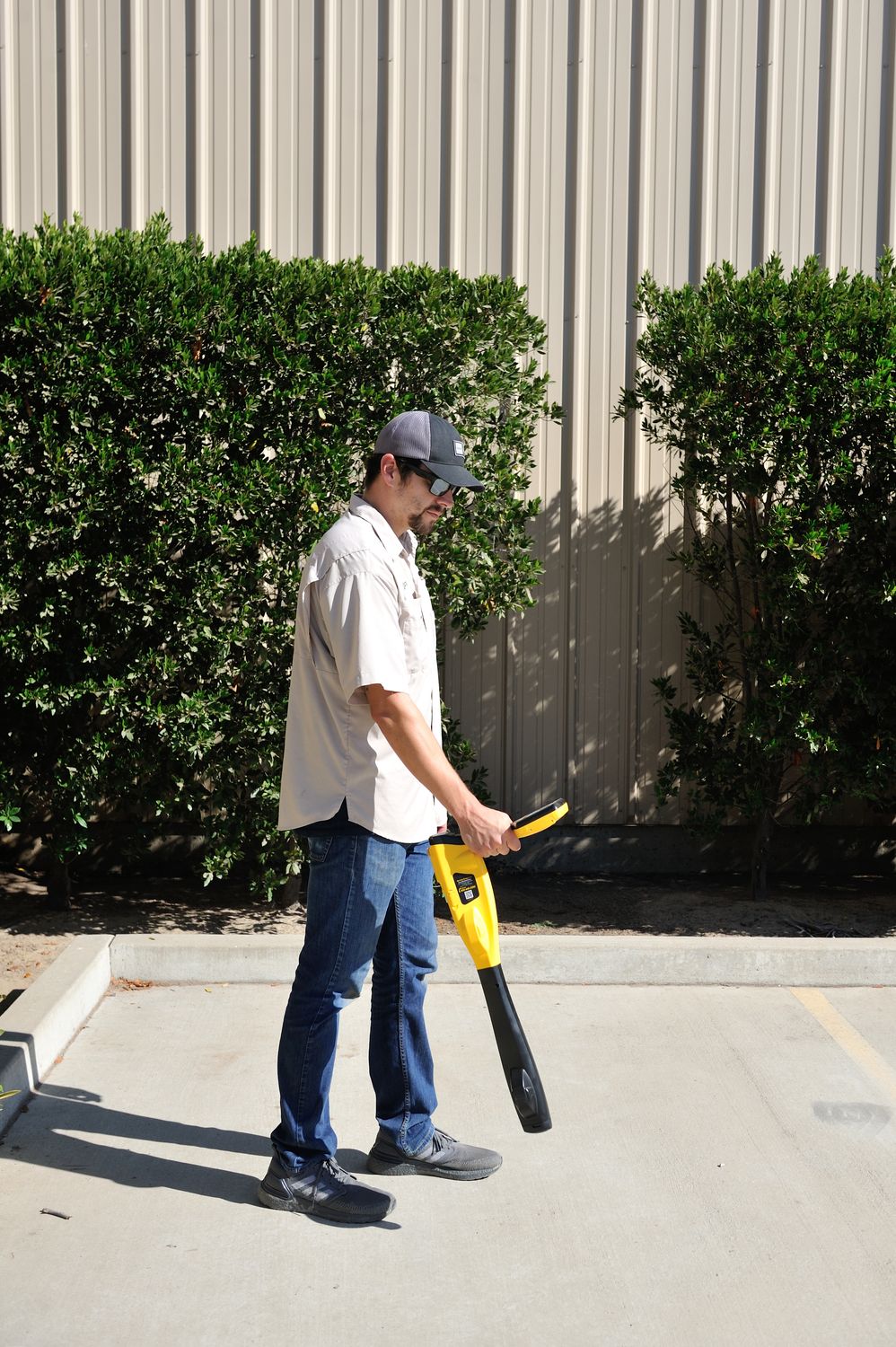

Vloc 3 Locator
- No ghost signals
- Graphical locate display
- Sonde locate and pushrod trace modes
- Optional Bluetooth option for GPS mapping
- High visibility color 4.3″/10cm Display
Option
Locator VM-540
- Push button depth
- Operates in 50/60Hz, 512Hz, 640Hz, 33 kHz frequencies
- Digital display – Depth, Signal Level, Battery Condition
- Audible tone indicating signal strength
- Simple keypad
- High impact thermoplastic (ABS) injection molded housing
- Carbon fiber reinforced antenna tube
- High rejection of power source interference
- Superior sensitivity over wide temperature range
- Weather resistant – IP54 and NEMA 4 rated
- Enhanced ergonomic design
- 20-Hour Battery Life
